MACH 8

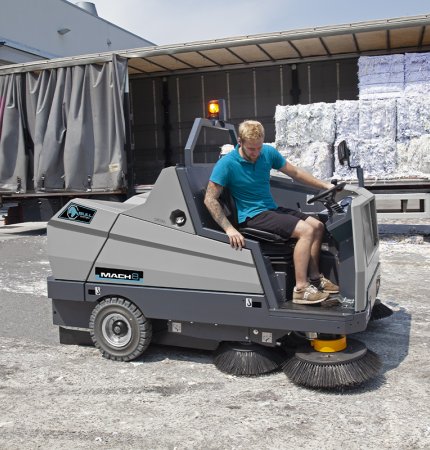

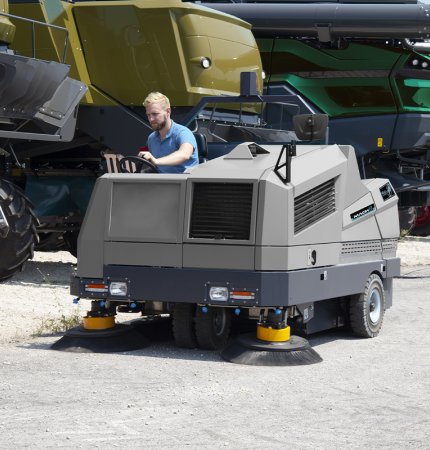

he MACH 8 is a powerful, heavy-duty sweeper, with a wide cleaning path (up to 2.310 mm / 89 in).
It is an extremely robust sweeper (both the machine’s chassis and body are made of steel) and is high performing even in the collection of large quantities of dust and gravel.
The superior features and dirt container capacity (up to 500 L / 132 gal) make the MACH 8 the perfect solution to quickly clean large areas that are extremely dusty or dirty, in any application, which includes demanding environments such as heavy industries.
The innovative design of the MACH 8 – the only machine on the market that offers direct forward throw sweeping and a driving position at the front of the machine with an automotive steering system – makes this industrial sweeper particularly maneuverable. This is a great advantage in contexts, where it is necessary to carry out cleaning not only quickly but with great precision, due to the presence of confined and congested spaces. For example, in logistics warehouses where goods are constantly being moved.
The MACH 8 is easy to drive, with a compact turning radius, it has the perfect dimensions to clean the corridors between one stock rack and another in modern logistics centers.
The highlight of the MACH 8 is its capability to pass over speed bumps and manage sudden changes in gradient. The new machine from MACH is in fact the only machine on its kind which offers a practical solution to this problem, an impossible task for any other industrial sweeper.
For this reason, and the fact that the MACH 8 can overcome gradients of 21% without losing power, the machine is well suited to clean large parking areas (open air, covered and multistory).
Key Information
BULLsystem
This technology from MACH gives you a machine with direct forward throw sweeping and a front driving position. This guarantees maximum performance in debris collection and maximum handling during operation.

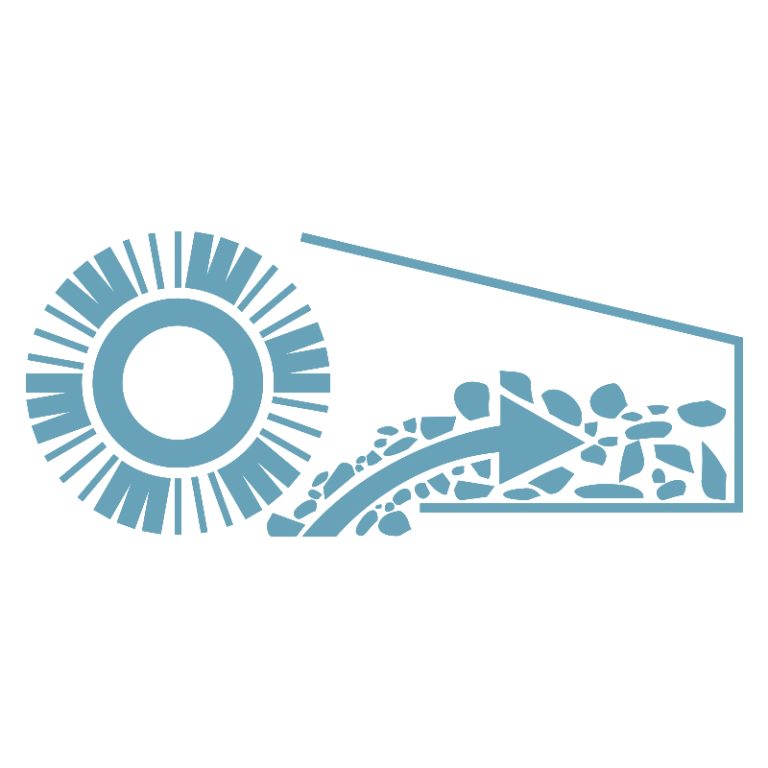

Direct forward throw sweeping
This sweeping method delivers the best cleaning results. It efficiently manages both fine dust and heavy or bulky debris.

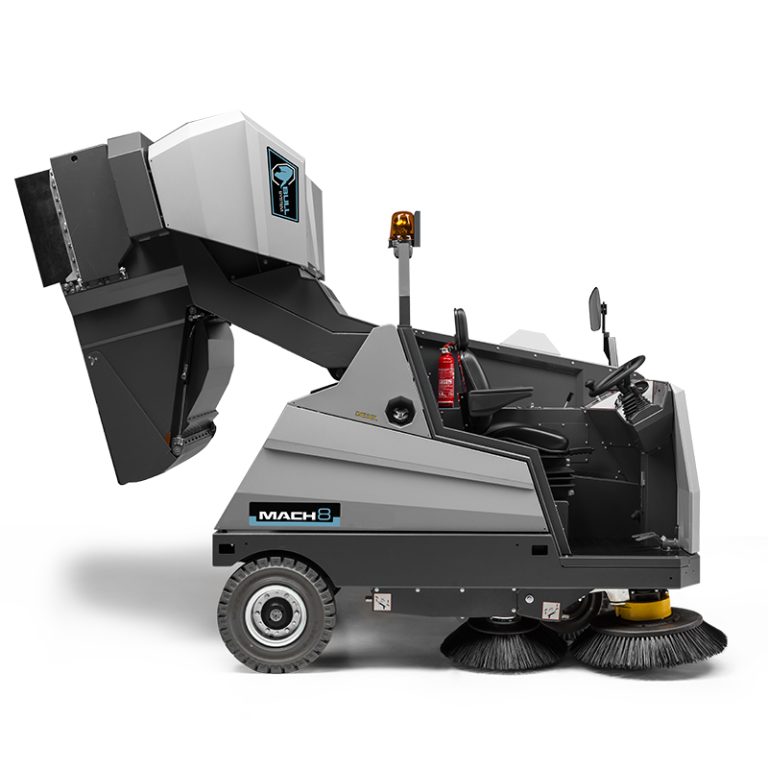

LoadBOOSTER
The dirt container (also known as the hopper), with rear hydraulic lift, is made completely in steel and has a capacity of 500 L / 132 gal. The high dump system (which lifts to a height of 1.580 mm / 62.2 in) effectively compacts debris, utilizing all the available space in the container, before having to stop operation to empty.

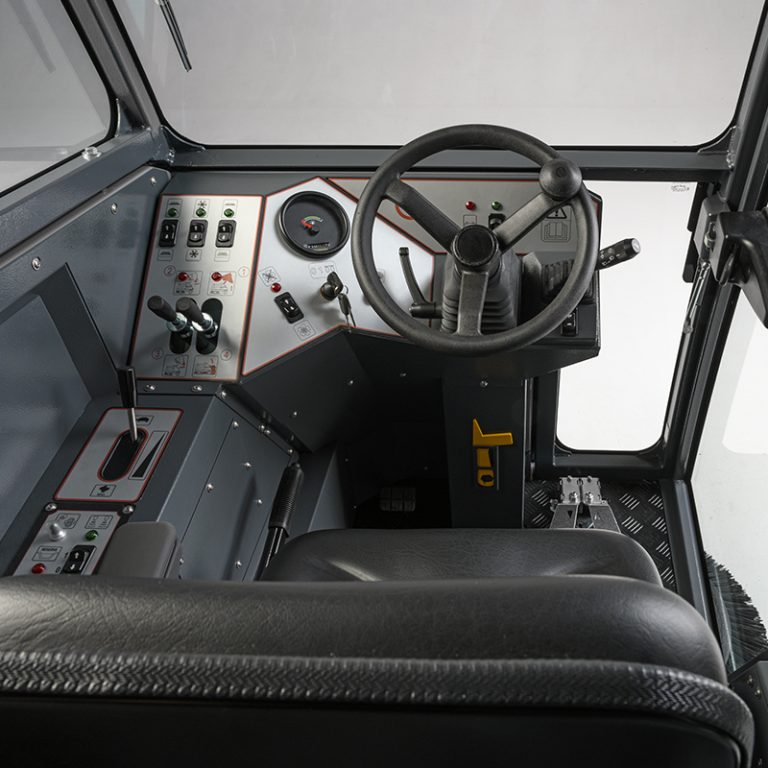

Automotive steering system
The driving position at the front of the machine, together with an automotive steering system and controls, and front wheel steering, make this powerful sweeper particularly intuitive to drive.
Gradient Booster
This hydraulic device reduces forward speed to always have the maximum torque available and is useful to overcome obstacles or steep gradients of up to 21%.

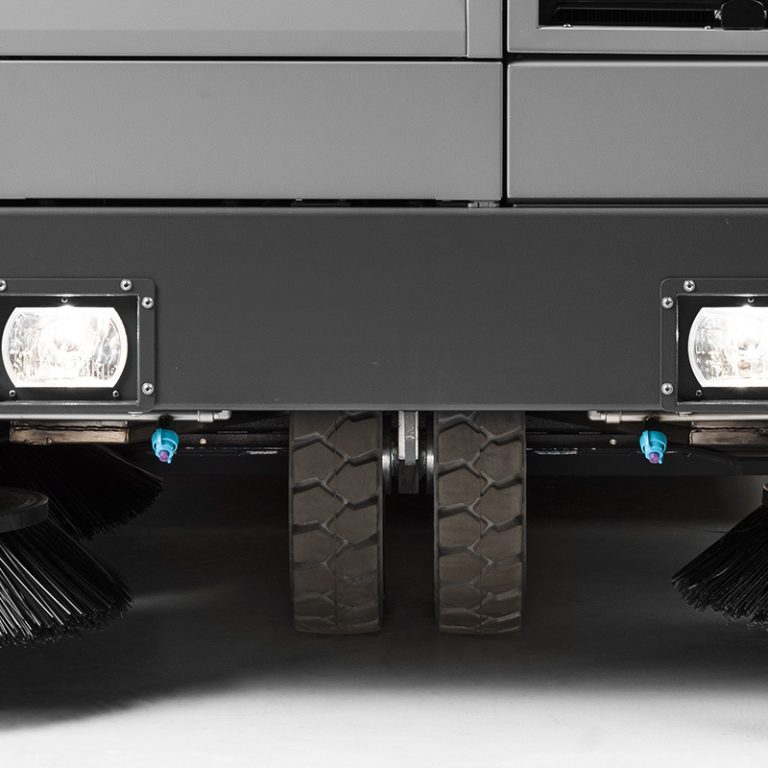

Independent twin front wheels
Rotating around the same pivot, but in opposite directions, the twin front wheels guarantee better stability, reduced wear of the tyre, a tight turning radius, and easy steering from a standing position.

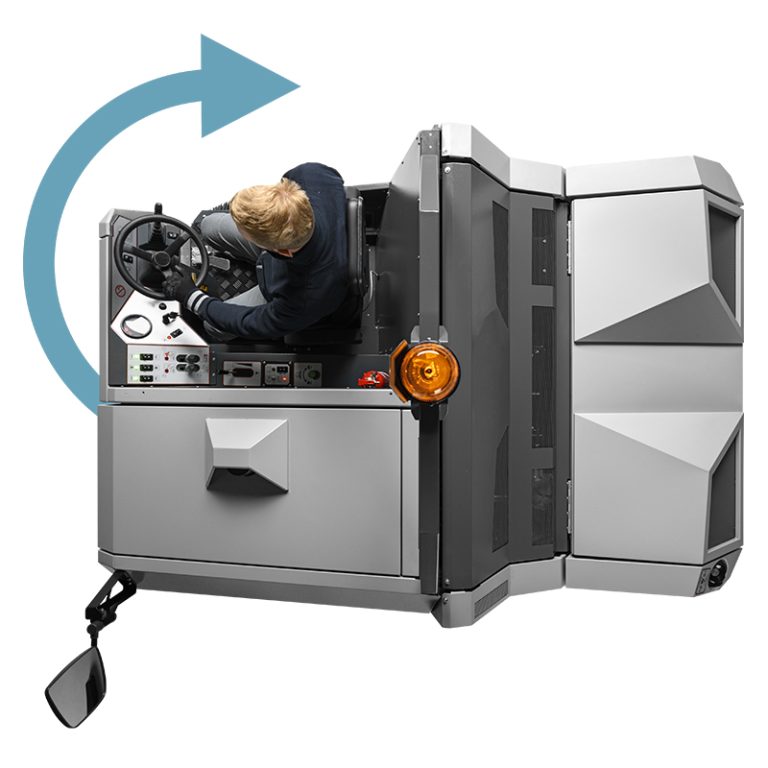

Compact turning radius
The steered front wheels, short wheel base and tapered design of the rear part of the machine, allow a 180-degree turn to be completed with a turning radius of just 2.535 mm / 99.8 in.

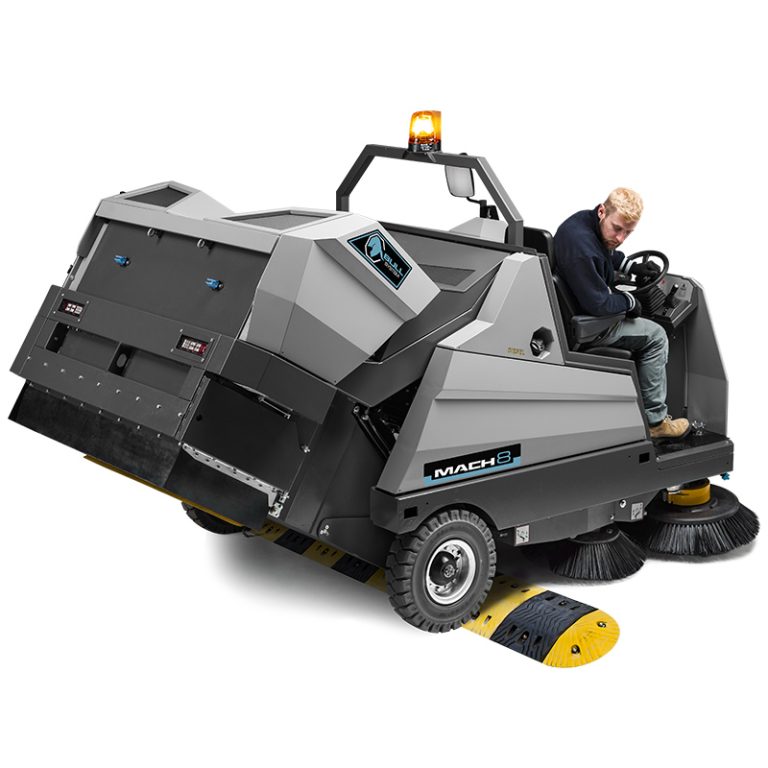

Driveover System
The MACH 8 has been designed to pass over different height speed bumps without problems, an impossible task for other sweepers.

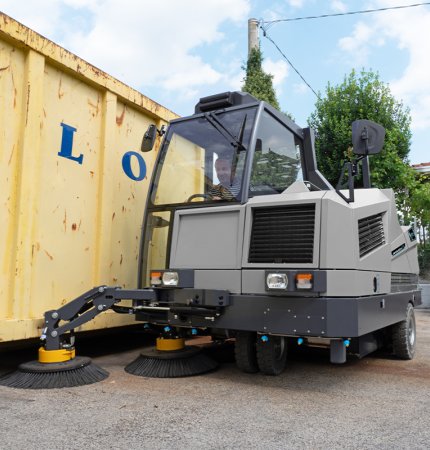

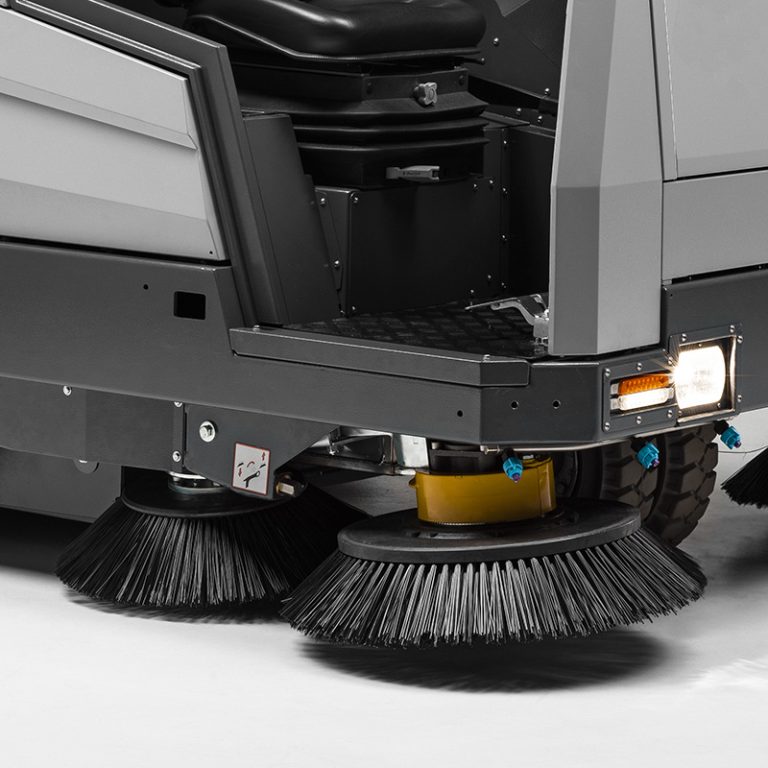

Double side brush
On the right side of the machine, which is key when cleaning along curbs and when making turns, there is not just one, but two side brushes therefore raising the standard of cleaning and avoiding the loss of debris during a curve (a phenomenon known as sweeper trailing). A left side brush is also available as an optional.

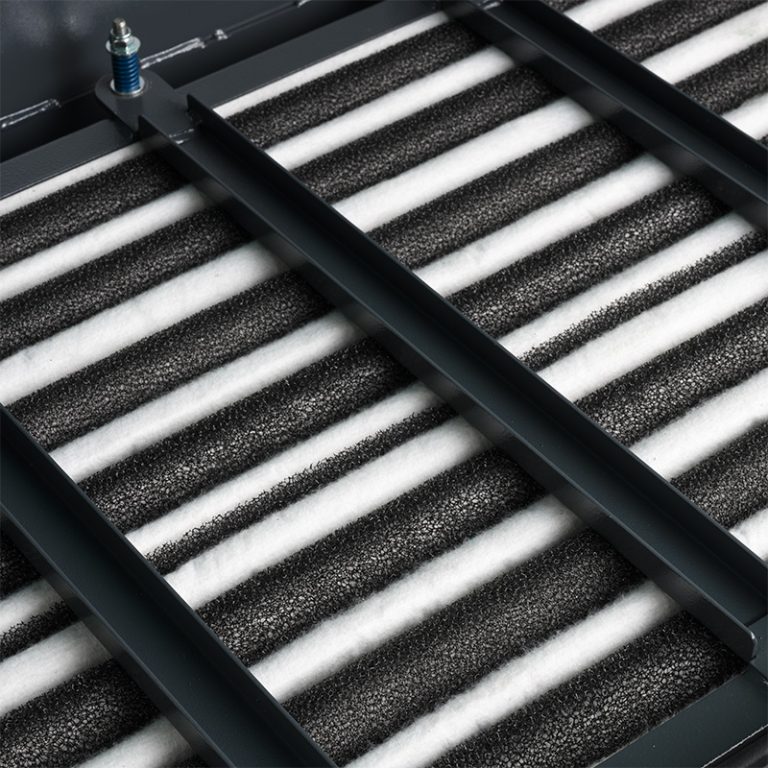

13 m2 / 139.9 sq ft Multipocket Filter
The MACH 8 is fitted with an antistatic filter, which is washable, with an automatic shaking system for the cleaning of the filter. The smart design of the filter (without tight corners) and its large dimensions, guarantee high filtering performance that is maintained over time.

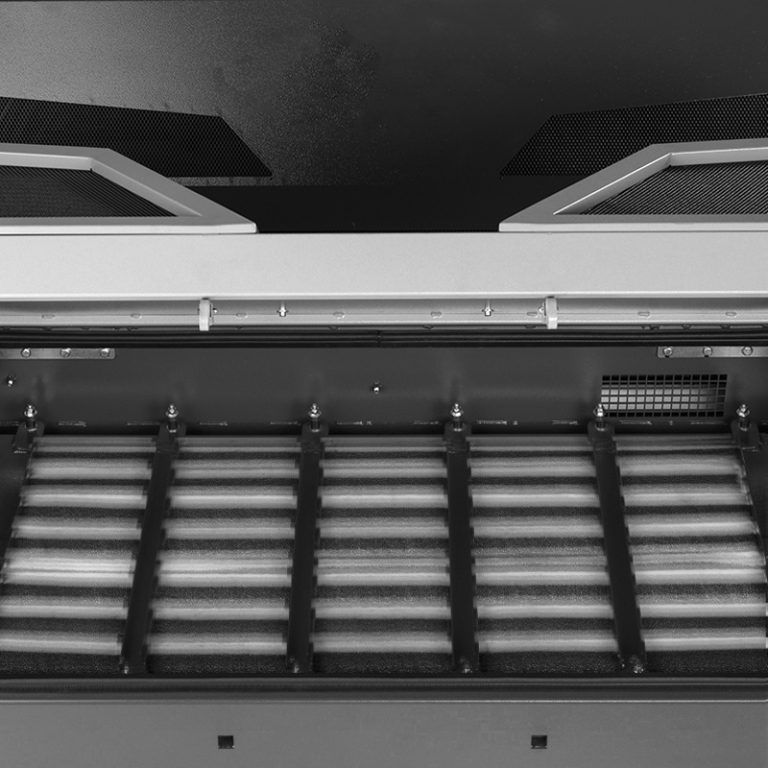

Automatic cleaning of the filter
A unique filter shaker automatically activates at the end of operation, in order to shake out dust residues from the filter. It is important to note that the vibrations that shake the filter are only transmitted to the material of the filter and not to the structure of the filter case. This is a fundamental detail which prevents wear of the casing and gaskets.

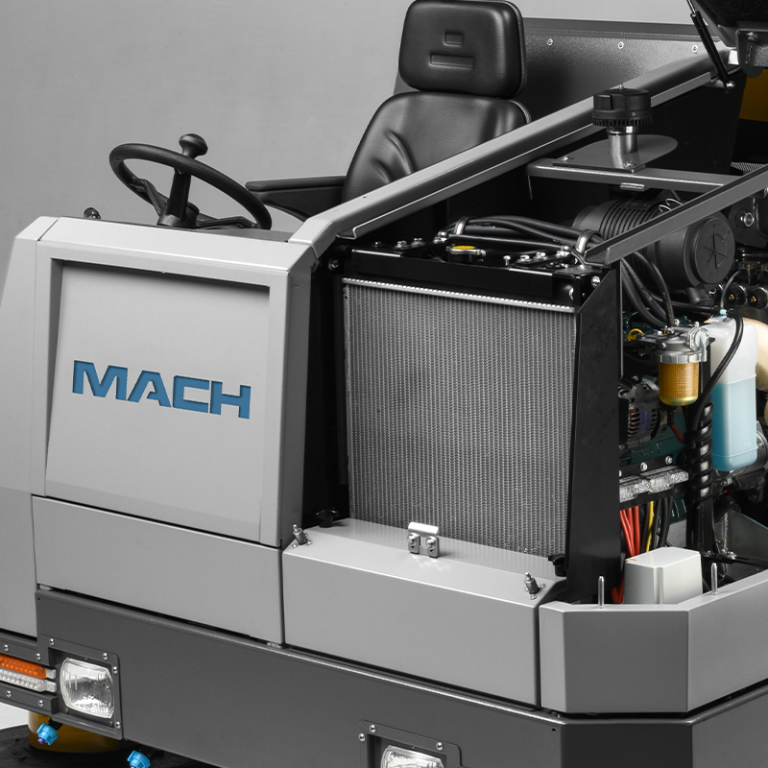

Engine cooling system with frontal radiator
The forward position of the radiator guarantees a greater flow of air to cool the engine and avoids the risk of filter blockages due to dust being sucked in.

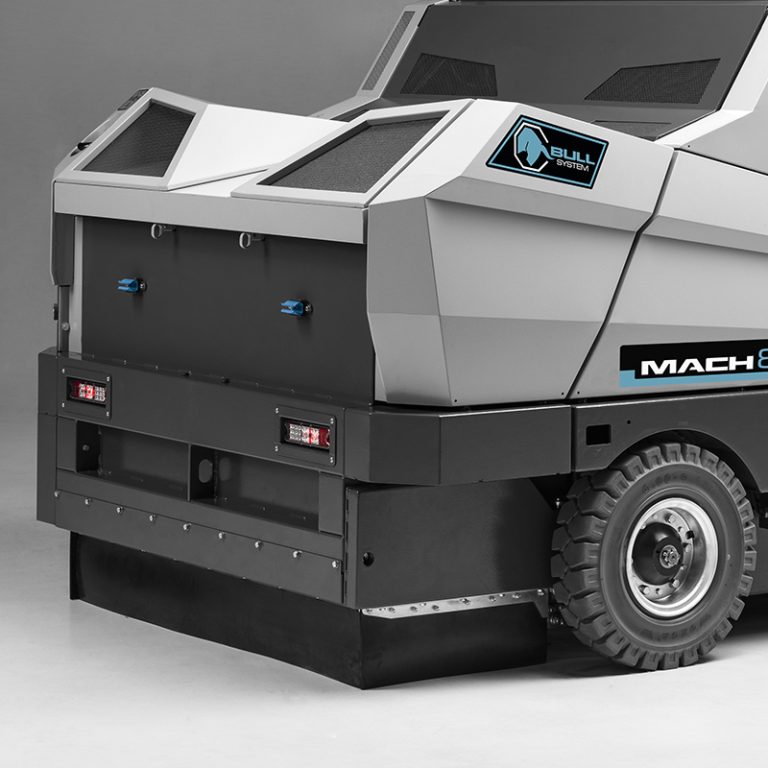

Made completely in steel
The chassis and body are made of thick steel which is varnished, guaranteeing maximum resistance even in tough conditions.

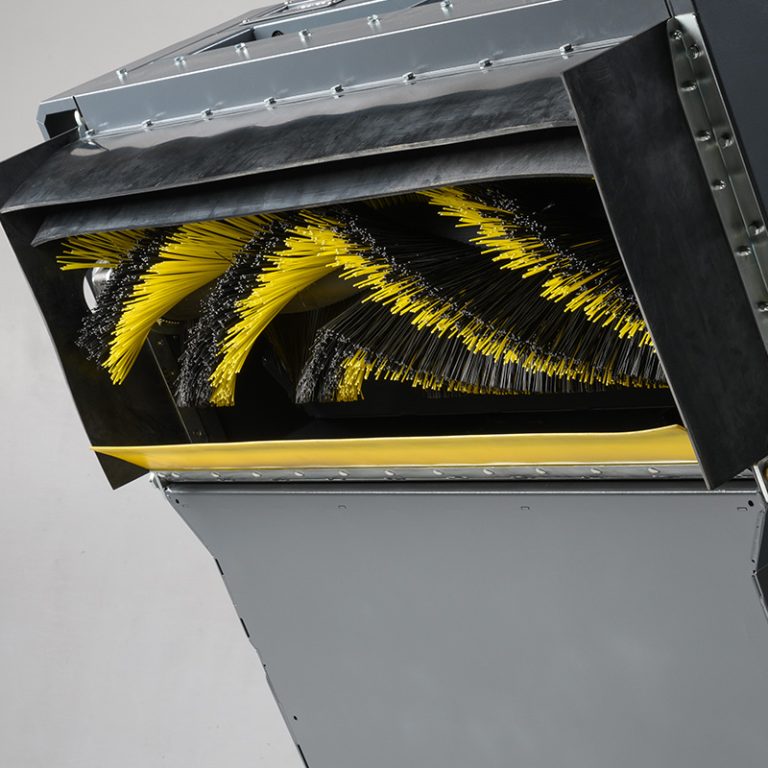

Multibristle main brush
The special MACH brushes with rows of mixed bristles in a chevron pattern are the secret to collecting debris of different weight, without having to substitute the brushes.

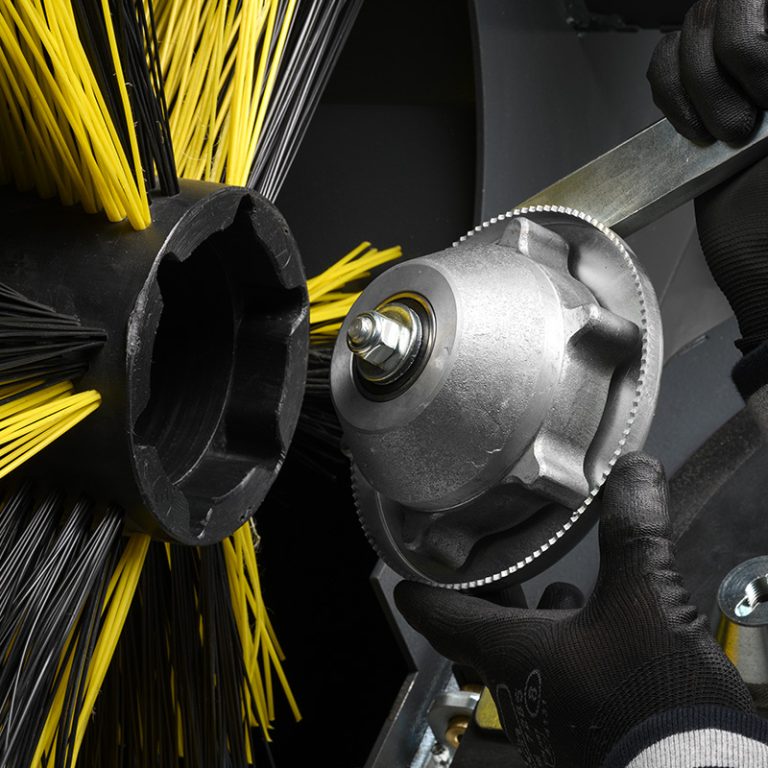

SharkCap
The toothed SharkCap antijam brush protection system prevents the brush and bearings from being damaged by string and plastic or metal filaments, therefore safeguarding both brush performance and lifespan

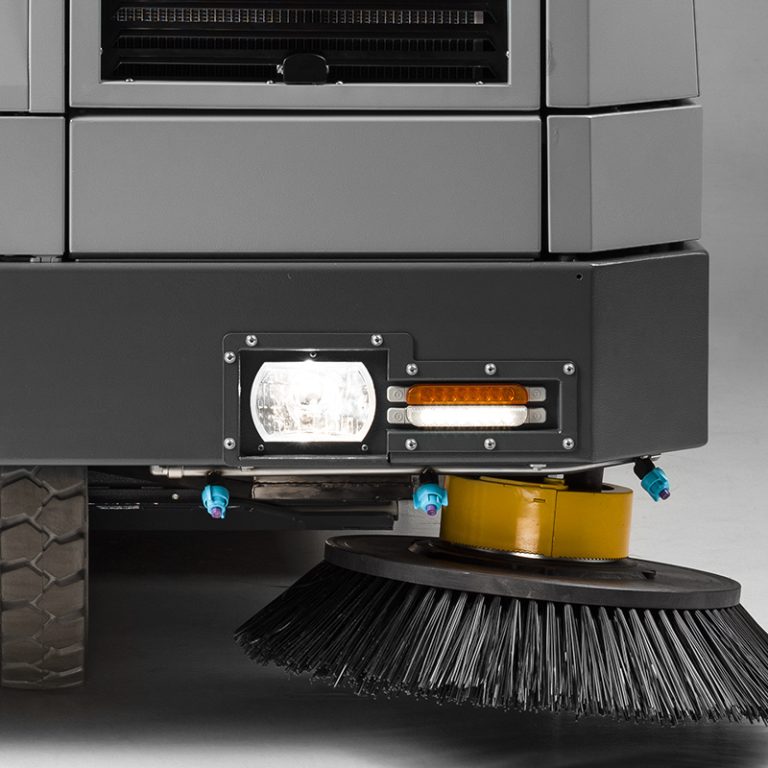

Wet side brush dust control
The side brushes of the MACH 8 can be equipped with an optional water nebulizing system to keep down dust during operation. Thanks to the 66 L / 17.4 gal high capacity stainless steel tank, water flow is guaranteed throughout the entire duration of cleaning.
AVAILABLE VERSIONS
- MACH 8 HDK – with 1,500 cm3, 4-cylinder, 36 hp Kubota engine with liquid cooling.
- MACH 8 HGK LPG – with 1537 cm3, 4-cylinder, 42,6/44,8 Hp (Petrol / LPG) Kubota engine with liquid cooling.
APPLICATIONS
- INDUSTRIAL MANUFACTURING: Paper mills, cement works, glassworks, foundries, brickworks, sawmills, power plants, distilleries…
- LOGISTICS: warehouses, logistics hubs, food storage facilities, ports and airports, grain and seed stores, fruit and vegetable wholesale markets…
- PUBLIC AREAS: town centers, pedestrian areas, cycle lanes, car parking, concert and event venues…
- OTHER SECTORS: multistory and open-air car parking, regional airports, hospitals, exhibition centers, shopping centers, resorts, holiday villages, stadiums, sports centers, theme parks and recycling centers.
SURFACES
Concrete, porcelain tile, road surfaces, quartz finished concrete, paving stones, self-blocking paving stones, porphyry, sanpietrini (cobblestones), asphalt and any other floor types in any condition.
| TECHNICAL SPECIFICATIONS | HDK (diesel) |
|---|---|
| Cleaning path with 2 side brushes | 2.100 mm / 83 in |
| Cleaning path with 1 side brush | 1.700 mm / 67 in |
| Cleaning path with main brush | 1.270 mm / 50 in |
| Hourly performance | 28.350 m²/h / 305,156 ft²/h |
| Forward speed | 13,5 km/h / 8.4 mph |
| Dirt container volume | 500 Kg / 1,100 lbs |
| High dump height | 1.580 mm / 62.2 in |
| Filter type | Multipocket Filter / 140 ft² |
| Traction control | Hydraulic |
| Primary motor | Diesel Kubota 24.8 hp |
| Weight | 2.054 kg / 4,528 lbs |
| Size with 2 side brushes (l x w x h) | 2.755 x 2.080 x 1.515 mm / 108.5 x 81.9 x 59.6 in |
